How a sheet metal deburring machine works

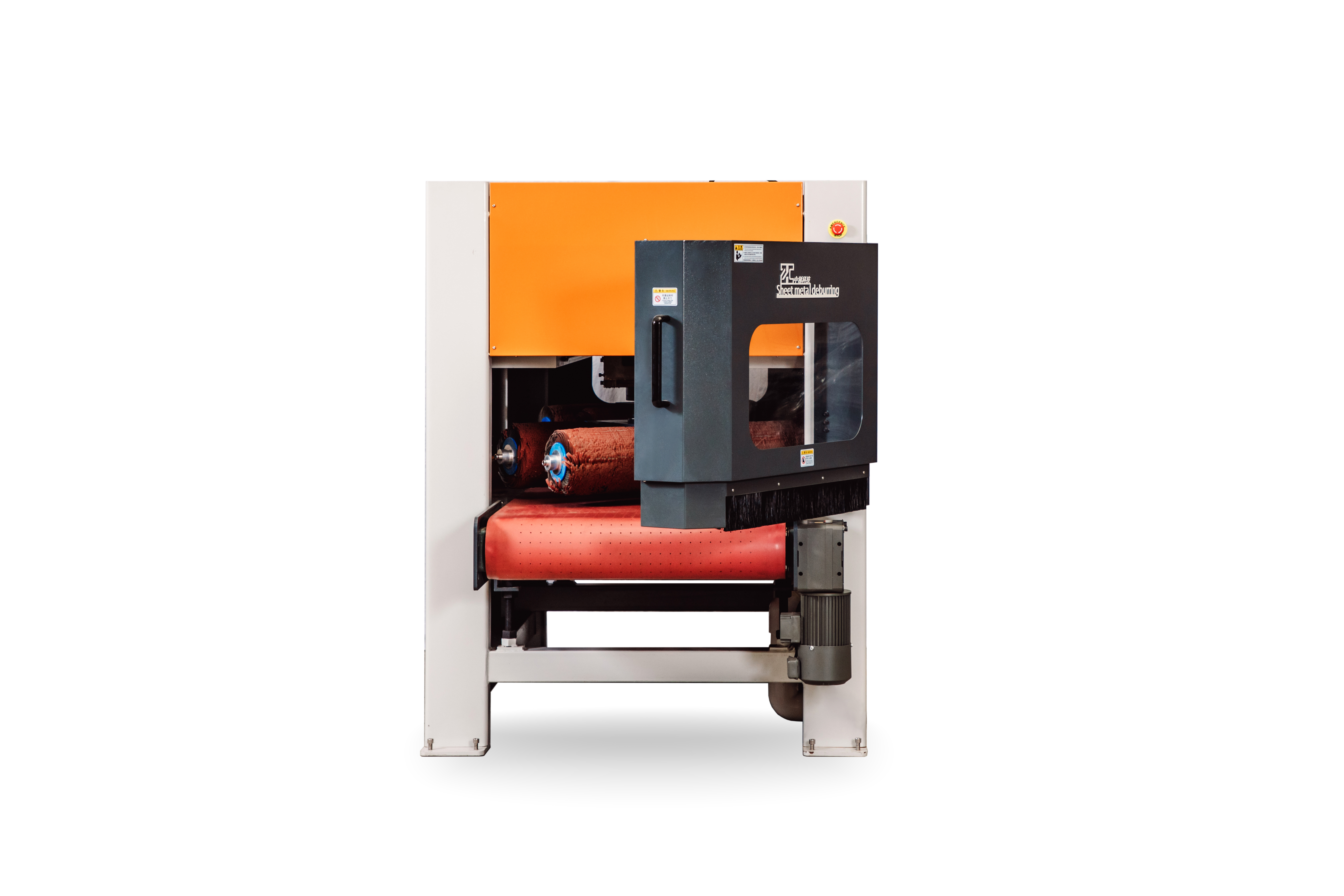

1.Wanxiang Roller brush

Deburring Rounded corners function for Universal roller brush mechanism The sand wheel on the sand wheel is finished，Universal roller brush institution Two pairs of sand reels are horizontally opposed，Reverse high-speed rotation, under the action of the equipment revolution mechanism, horizontally rotate. The high-speed rotation of the sand wheel generates centrifugal force to scrape and rub the edge of the work piece contour, which is achieved in combination with the overall revolution The work piece is obtained anywhere on the conveyor belt Wanxiang Uniform chamfering, so that all the contour edges of the product are smooth and rounded and consistent R angle。

2.adsorption The principle of the fixing mechanism

There are three sets of adsorption and fixation methods to complete the fixation of the work piece during processing, and there are when the front section of the sanding belt is working Press roller Clamping and large flows Fans The negative pressure is generated The adsorption method holds the work piece in place The work piece enters the chamfer area of the universal roller brush and is fixed by negative pressure adsorption。The equipment also has a built-in magnetic adsorption mechanism (optional), when the product is magnetic, the high-flow fan can be turned off and the magnetic adsorption can be used, so as to save energy and reduce consumption, and greatly save production costs.

3. Principle of conveying mechanism

Work piece conveying composed synthetic rubber Conveyor belt drive, Synthetic rubber material has high wear resistance and high damping，The transmission mechanism has a correction member,Conveying speed Pass Variable frequency adjustable。
